CPAP System

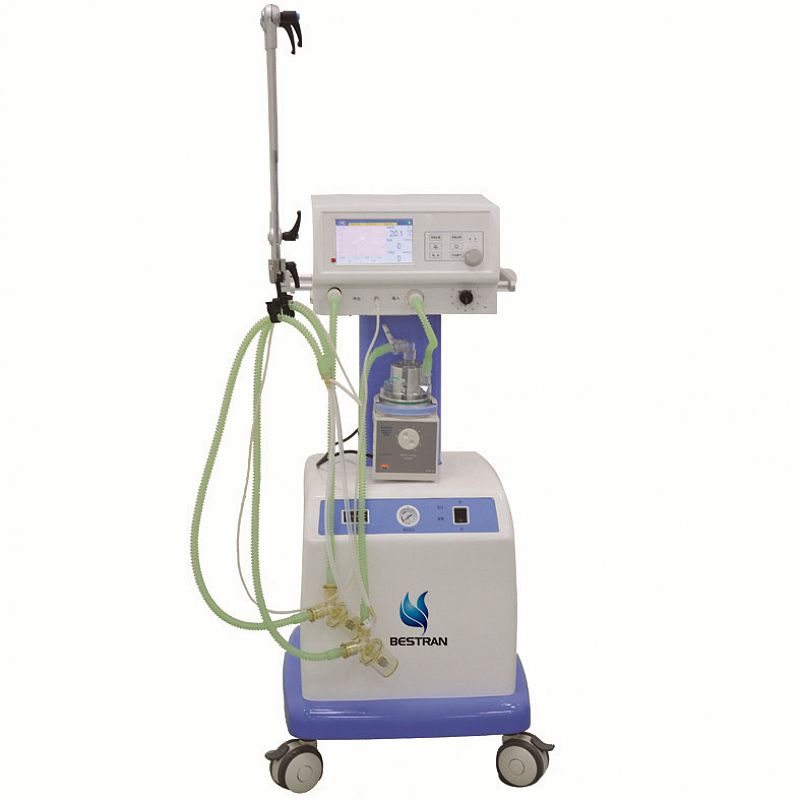

BT-NLF200A CPAP System
Application:
The CPAP System makes a good performance in Neonatal Intensive Care Units (NICU) and other departments. Perlong Medical CPAP System offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in ventilation is based on rich 23-year history of developing CPAP solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
Trust Points
l Simplicity: easy to use, easy to move with 4 wheels.
l Choice: adapt the equipment to your patients and procedures freely
l Designed and manufactured by Perlong Medical with over 23 years experience in this area.
l Flexible configurations to suit your needs.
l International standard and advanced technology suitable for all baby patient around the world.
l Compact interface and big screen give you better operating experience.
l Over 2,000 units installed in the world.
Features
l 7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
l Integration breathing circuit design, ensure easy operating and keep tidy.
l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
l Real time pressure-time graphics and high precision O2 concentration detection function included.
l Built-in air and oxygen blender, ensure stable oxygen concentration.
l Stable and low noise air compressor create quiet work environment for doctors, can be used for 2-3 CPAP Systems together.
Safety
l Three level alarming system, visual and sound alarm information.
l With lots of alarming, reminding and protection functions.
l Advanced power management control technology.
l With built-in backup power source, when outside power source goes off, back-up power source starts to work.
Specifications
Oxygen concentration | Adjusting range:21%-100% |
| Monitoring range:15%-100% |
CPAP | Adjusting range:0cmH2O-15cmH2O |
| Monitoring range:0cmH2O-60cmH2O |
Continuous flow | Adjusting range:2L/min-20L/min |
| Monitoring range:2L/min-20L/min |
Manual Ventilation | Output flow:20L/min±5L/min |
Air compressor | Continuous output flow:≥25L/min Peak output flow:≥120L/min |
Graphical display: |
|
P-T(pressure – time) |
|
Size Wooden case packing size:L 670*W 700*H 1410mm , GW:90KG ; NW:57.2KG
Alarm and protection | |
The AC power failure alarm | Power failure or no connection |
Internal battery backup low voltage alarm | <11.3±0.3V |
High oxygen concentration alarm Low oxygen concentration alarm | 19%-100% 15%-99% |
High Airway pressure alarm Low air input pressure alarm Low oxygen input pressure alarm Air and oxygen blender alarm | 1.5kPa-6kPa <200kPa <200kPa When any gas source lack |
| When differential pressure> 0.1mPa |
Compression pump alarm
| Excess temperature |
Working conditions |
|
Gas source | O2,AIR |
Pressure | 280kPa-600kPa |
Voltage | 100-240V |
Power frequency | 50Hz±1Hz |
Input power | Main engine:≤25W Air compressor:≤675W |
