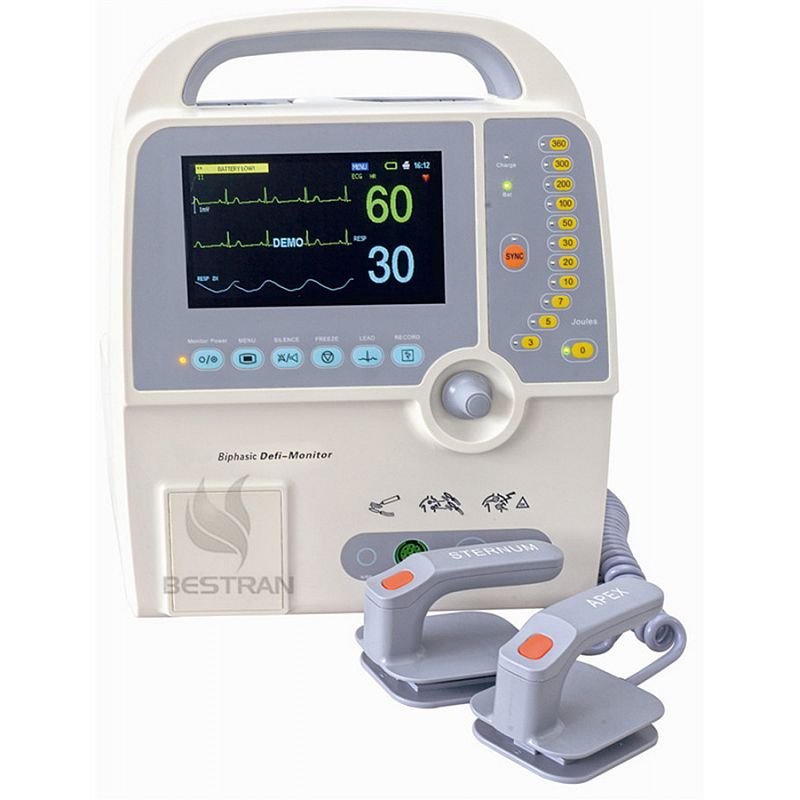

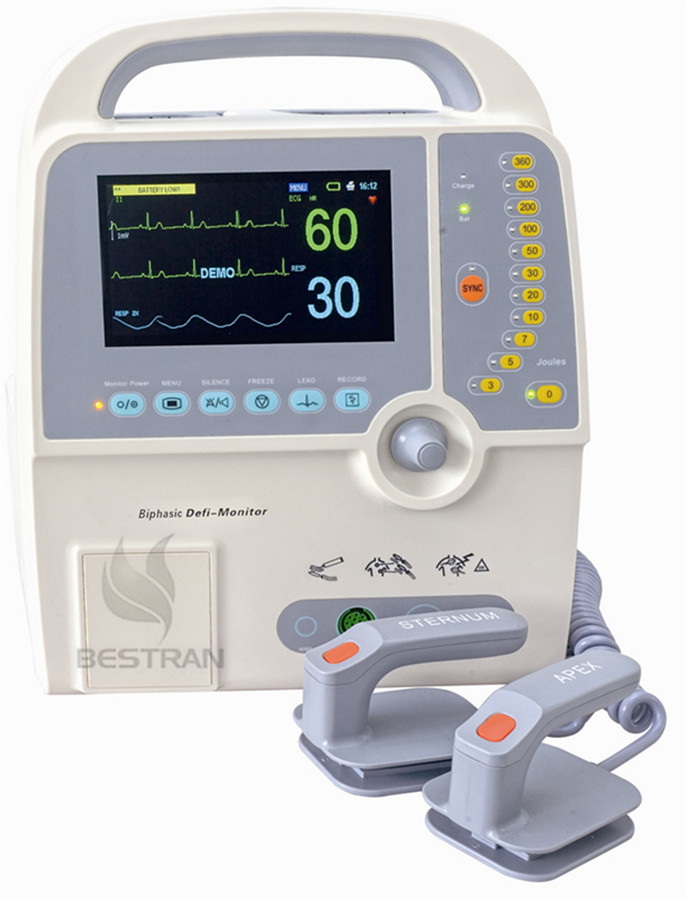

Defi-monitor/biphasic

BT-8000D

Specification

n Display

Ø Screen Type:High-resolution display, TFT colour display

Ø Screen Size: 7 inches (17.7cm) diagonally

Ø Sweep Speed: 12.5/25/50mm/sec

Ø Information: Heart Rate, Lead, Alarm On/Off, Delivered Energy

Ø Resolution:800X480

n ECG

Ø Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.

Ø Lead Selection: Displayed on monitor, paddles, I, II, III,AVR, AVL, AVF, V.

Ø ECG Size: 2.5,5, 10, 20, 30 mm/mV display on monitor.

Ø Heart Rate: 20-350BPM.

Ø Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

n Defibrillator

Ø Waveform: Biphasic

Ø Defibrillator type: Manual External Synchronous/Asynchronous Defibrillation.

Ø Charge Time: Less than 10 seconds to 360 Joules

Ø Energy Display: Monitor display indicates both selected and delivered energy.

Ø Charge Prompt Type: Voice and visual prompts.

Ø Energy Selection: Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules

Ø Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

n Battery Description

Ø Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAh X2

Ø Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges.

Ø Low Battery Indicator: Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on

Ø Recharge Rate: 80% in 3 hours. 100% in 5 hours.

n  Built-in Recorder

Ø Paper: 50mm thermal.

Ø Printing Method: High-resolution, thermal print head.

Ø Record date, time ,sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform

Ø  Print mode

; HR exceed limits alarm recording

; Auto timed recording

; Real-Time Recording

; Defibrillation discharge trigger recording

n Power

Ø AC-DC dual-use: Use the  batteries,AC100V~240V,50/60 Hz.

Ø Vehicle Voltage(Option): DC 12V

n Main unit:

Ø Portable

Ø Dimensions:L320xW205xH410

Ø Weight:7.5kg

n Pulse Oximeter (Optional)

Ø  Display: Spo2 value,waveform, Pulse

Ø Probe: Standard adult finger clip

Ø Range: 0-99% for adult, pediatric and neonatal patients

n AED (Optional)

Ø Voice prompts and screen prompts.

Ø Energy  Programmable Sequence:

200,300,360 Joules;

           150,150,200 Joules;

             50, 75, 100 Joules;

             30, 30, 50 Joules;

Ø Discharge Control: Control on device front panel.
