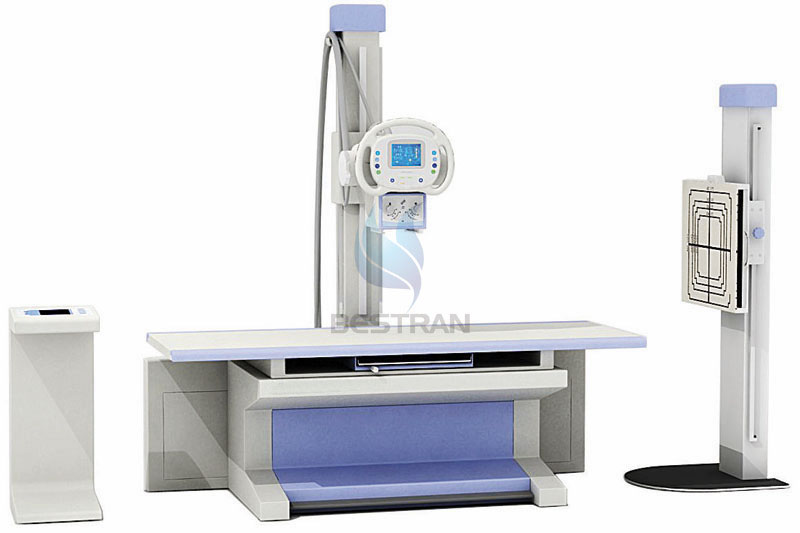

BT-XR05 High Frequency X-ray Radiograph System



I. Application:

This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.




II. Specification:

Item

content

Output power

65kW

Main inverter frequency

60kHz

X-ray tube

(Toshiba E7252X)

Rotary anode, dual-focus

Large/ Small focus

1.2mm/ 0.6mm

Power of large/ small focus

75kW/ 27kW.

Anode thermal capacity

210kJ

Tube thermal capacity

900kJ

Rotary anode speed

9700rpm

Anode target surface angle

12°

mA range

10mA-650mA

Tube voltage

40kV-150kV

Exposure Time

0.001s-12.5s

mAs

0.1-630mAs

Table radiography grids

Grid density: 103L/inch

Grid ratio: 10:1;

Focusing Distance: 120cm

Stationary type: 18"×18"

Cassette

Film size: 356*432mm(14”*17*)

Longitudinal movement: 560mm

Mechanical Movement

SID:

450-1200mm

X-ray tube Longitudinal movement

1370mm

X-ray tube Rotation range around transverse axis

±90°

X-ray tube Rotation range around X-ray tube axis

35°

X-ray tube Rotation range around pillar

4* 90°

Table

Table size

2000×760mm

Table height

≤700mm

Table transverse movement

≥220mm

Table longitudinal movement

≥900mm

Power supply

380/400VAC three phase

50Hz

Operation method

1. Close-table graphic program controlled LCD touchable screen operation

2. Wireless remote control exposure







III. Standard Configurationt



No.

Item

Quantity

1

High frequency and high voltage X-ray generator

1

2

X-ray tube (Toshiba)

1

3

Collimator

1

4

High frequency inverted power supply electronic cabinet

1

5

Colored LCD touch screen control box

1

6

New integral radiography table (with pillar)

1

7

AEC

1




7. Upright Bucky Stand

1. Packing Detail: 1950*750*600mm

N.W.: 200kg G.W.: 235kg

2. The height: 1768 mm

3. Movement range of cassette: 560-1625mm

4. Max film size: 17’’ ×17’’

Film size: 5"×7"-17"×17"

5. Parameters,

Grid Density: 103L/INCH

Grid Ratio: 10:1

Focus Distance: 150cm

Features: with Stationary Filter line, 18” X18”





IV. Feature:

1. It is installed with close-table graphical colorful LCD touch screen and wireless remote control exposure, which makes the operator easy to use.

2. We incorporate the latest compact high-frequency and high-voltage X-ray generator, which ensure superior image quality, while the skin dose is low, to protect the patient better.

3. human graphical LCD touch screen, intelligent and fast operation

4. It can choose KV, mAs two buttons system photograph mode and Kv, mA, S three buttons system, two photography mode could meet different users professional requirements perfectly

5. Adopt the technology of kV and mAs numeral closed loop control, real-time control of the microprocessor, which ensures the accuracy and repeatability of the output dose.

6. Be equipped with radiography parameter of multi-part, multi-posture, multi-body, adult -child physical characteristic, the operator can modify and save the parameter by himself, which makes the operation more conveniently.

7. Possess multiple automatic protection and fault clue function, which makes the operation safer and more reliable.

8. The radiography table can float in any direction, electromagnetic braking, position the patient more convenience and accuracy.

9. X-ray generator component can move round the axis of X-ray generator, cross arm and Pillar stand , be convenient with side and slanting direction projection and radiography of patient on the stretcher.

10. Be equipped with the chest stand, which is used in the radiography of the head, chest, belly, pelvic cavity, backbone and periphery.

11. Control console of graphic program controlled LCD touch screen is optional, which can set the radiography parameter and exposure in another room.



V. Options:

1. Control console
