Multi-function medical column

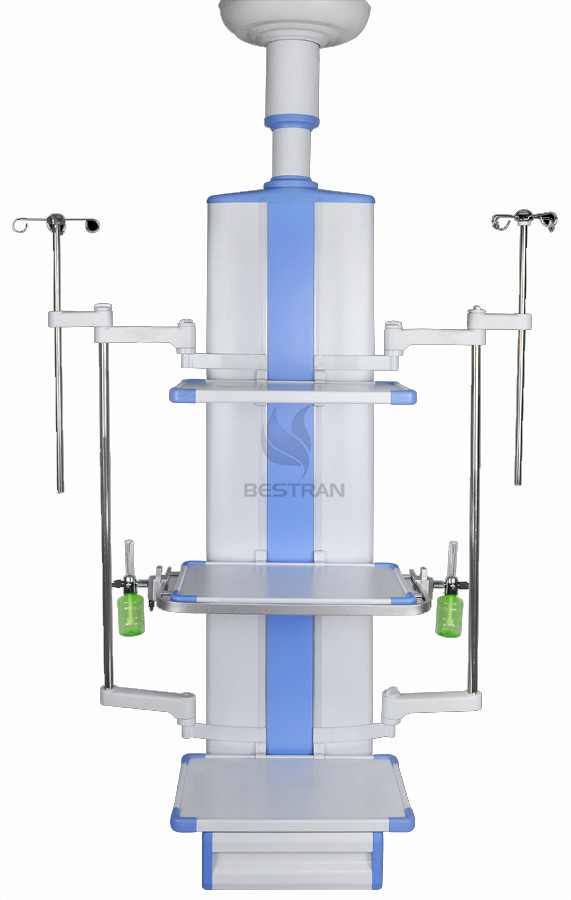

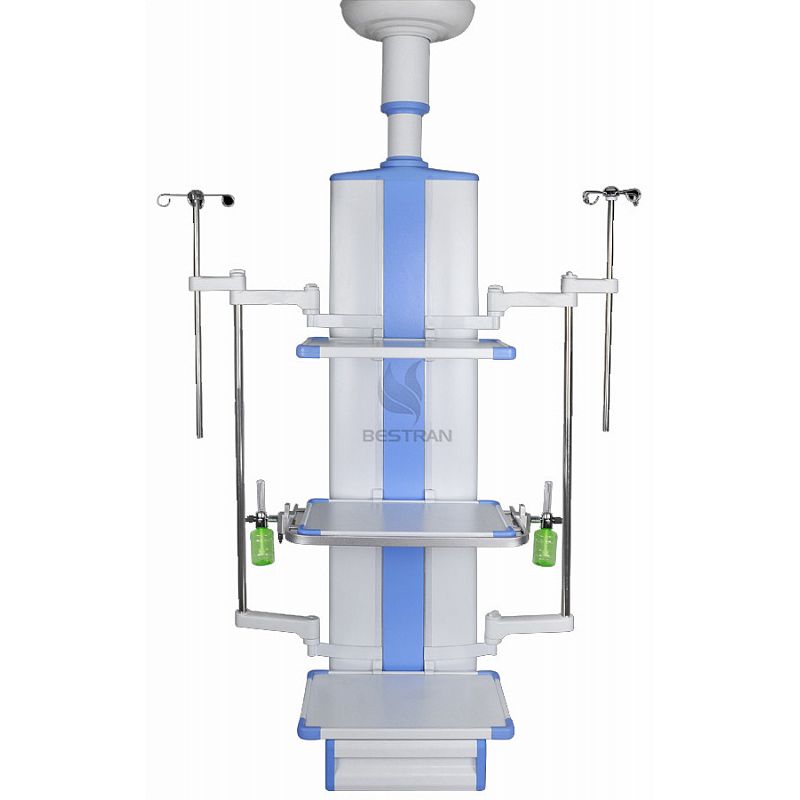

Multi-function medical column, ceiling type
BT-2V-1
1)Column horizontal rotation angle 340 °;
2)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;Air 2pcs;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
3)Instrument platform: three layers (height adjustable); rounded bumper design, each platform can load 30kg;
4)weight loading: 150kg;
5)Power supply: AC220V, 50HZ; AC110V, 60HZ
6)Electrical outlet: 8 pcs (220V / 10A);
7)Potential ground terminal: 2pcs;
8)The network interface: RJ45 1pc;
9)Drawer: 1pc;
10)Syringe pump rack 1pc, infusion pump rack 1pc;
11) storage basket 2pcs
11)The main material: high-strength aluminum alloy;
12)The surface treatment using imported high-voltage electrostatic powder spray;
13)Ceiling-mounted, high stability;
BT-2V-1
1)Column horizontal rotation angle 340 °;
2)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;Air 2pcs;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
3)Instrument platform: three layers (height adjustable); rounded bumper design, each platform can load 30kg;
4)weight loading: 150kg;
5)Power supply: AC220V, 50HZ; AC110V, 60HZ
6)Electrical outlet: 8 pcs (220V / 10A);
7)Potential ground terminal: 2pcs;
8)The network interface: RJ45 1pc;
9)Drawer: 1pc;
10)Syringe pump rack 1pc, infusion pump rack 1pc;
11) storage basket 2pcs
11)The main material: high-strength aluminum alloy;
12)The surface treatment using imported high-voltage electrostatic powder spray;
13)Ceiling-mounted, high stability;
