Sleep Therapy Bipap System

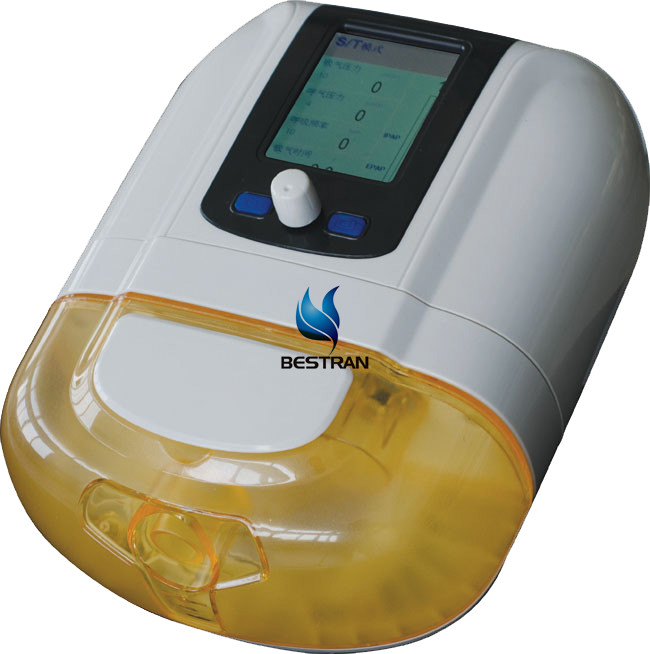

BT-S9700 Sleep Therapy System


Application

The Bipap System makes a good performance in sleep center, home and other departments. From high to low acuity, simple to complex cases, adult to geriatric patients, Perlong Medical Bipap System offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to take with your package anywhere.

l Choice: adapt the equipment to your patients and procedures freely.

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 2 modes: CPAP; S.

l Designed and manufactured by Perlong Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and screen display give you better operating experience.

l Over 2,000 units installed in the world.



Features

l TFT LCD screen displays the Ventilation parameters and alarming information.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Optimized design and fine manufacture, cooperating sound absorption composite, unique super mute design.

l Unique shuttle knob design, easy to operate and use in house.

l No need to add water by stopping the machine, very easy to use.



Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.



Specifications

Ventilation modes:

CPAP,S

CPAP

Adjusting range:4cmH2O-20cmH2O



Increment:0.5cmH2O

Ramp time

Adjusting range:0-60min



Increment:1min

Flex

Adjusting range:OFF;1-3



Increment:1

Humidifier

Adjusting range:0-5



Increment:1

Ppeak

0-30cmH2O



Graphical display:

Airway pressure histogram





Size

Carton packing sizeL 285*W 350*H 290mm , GW4.5KG ; NW3.5KG



Alarm and protection

High airway pressure

    10cmH2O-20cmH2O

Suffocation warning

     8s-12s no spontaneous ventilation

Pipe detached

             Pipe detached 16s



Working conditions

Using conditions



Environmental temperature

5-35

Relative humidity

15%-95%

Atmosphere pressure

830hPa-1060hPa

Storage conditions

-20-+60

Relative humidity

15%-95%

Atmosphere pressure

500hPa-1060hPa
